NivoRadar® NR 3000 – The free-radiating radar sensor NivoRadar® 3200 is mainly used in storage silos for level measurement of bulk solids.

RADAR SENSOR
The multifunctional 80 GHz radar sensor, available in two-wire and four-wire technology, provides continuous, non-contact level measurement for bulk solids and works very precisely, even in difficult media.
• 3° narrow beam angle
• High precision measurement, up to 120 m
• Easy configuration via plug-on display, UWT LevelApp, and PACTware
• Plastic horn antenna, threaded antenna, lens antenna
• Integrated lens cleaner

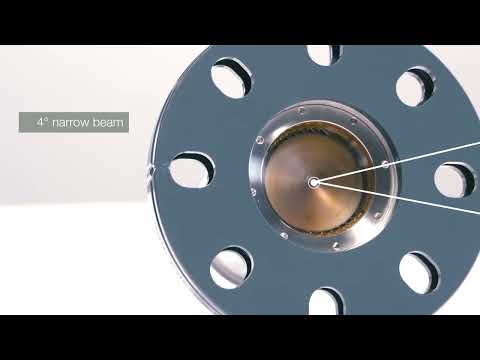

Due to the narrow beam angle, there are virtually no interference signals at the mounting nozzle, and bulk materials with material cones are optimally reflected.
The alignment unit allows the beam to be fixed on the desired point, e. g., the silo discharge point.
Measuring range/ 120 m (393.7 ft.)
tolerance ± 1 mm (± 0.04 in)
Pressure range 40 bar g (580.2 psi g)
Supply voltage 12 … 35V DC 90 … 253V AC
Process connection Thread > 1 1/2″ (G | NPT)
Compression- / Adapter flange DN80 | 3″
Fixed flange DN80 | 3″
Adjustable flange DN100 | 4″
Process temperaturerange -55 °C .. +250 °C / +1,200 °C with standpipe (-67 °F .. +482 °F / +2,192 °F with standpipe)
