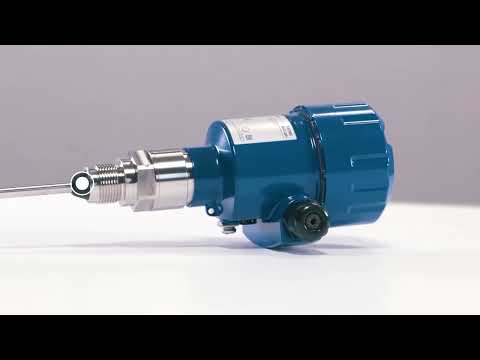

UWT NivoGuide® radar sensors are used for continuous level measurement in bulk solids applications.
The measuring range of up to 75m (246ft) and its high sensitivity from a DK value of 1.5 make it usable in almost all bulk solids. The measuring signal is guided on a rod or rope and is reflected by the medium, received again at the sensor and converted into a level signal. This makes it possible to measure reliably even in narrow and tall containers, regardless of the formation of dust or condensation. The NivoGuide® can also be used in high process pressures and temperatures.
A menu-driven quick start wizard makes commissioning easy and safe.
• TDR-sensor for level measurement in solids
• Automatic probe end tracking makes it suitable for use in almost all solids
• High flexibility by shortenable probe length
• Measuring range up to 75m
• Easy commissioning by quick setup guide
• Works in applications with buildup, dust or condensation.
• Easy setting and diagnosis with control module and display.
• Process temperature up to 200 ° C.
• A variety of approvals available.
• Rod and rope version.
• High chemical resistance of the probe.
• High pressure and high temperature versions.
